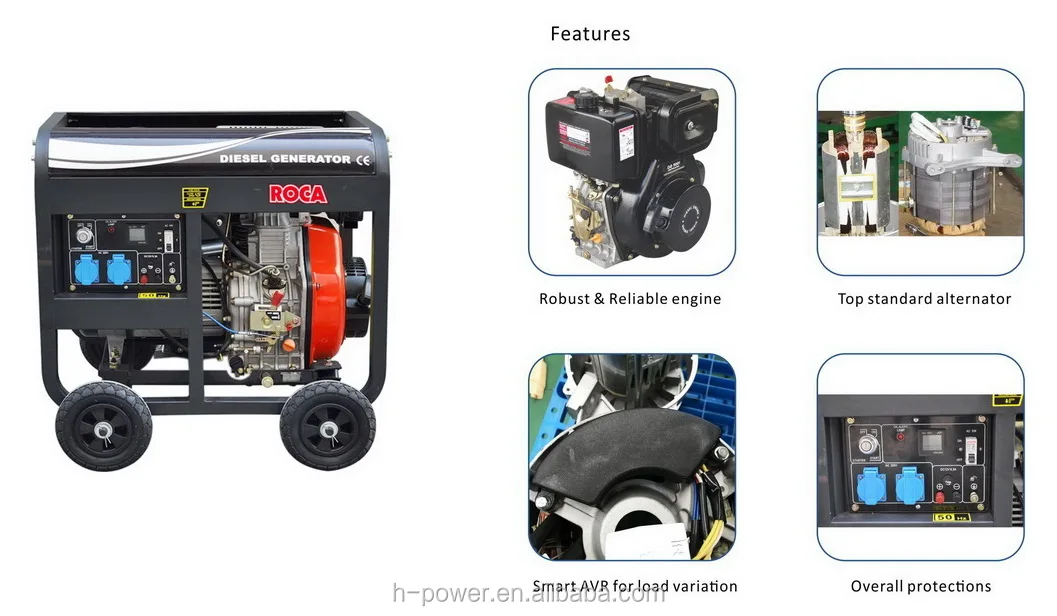

Open Type Diesel Generator (5kva-8kva)

FOB Reference Price:Get Latest Price
US $500-600 / Pallets | 10 Pallet/Pallets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ROCA
Model Number:
DG6500LE3, DG7500LE3, DG8500LE3
Speed:
3000/3600rpm
Frequency:
50HZ/60HZ
Rated Power:
5kva, 6kva, 7kva
Rated Voltage:
110/220V, 230V/400V
Engine:
Diesel, single cylinder, air-cooled
Packaging & Delivery
Packaging Details
Strong carton + Plywood Pallet
Port
Shanghai port, China
Product Description



ModelDG6500LE3DG7500LE3
Frequency                                   Hz50 / 6050 / 60
Rated voltage                                V110/220,120/240, 220/380, 230/400110/220,120/240, 220/380, 230/400
Rated power output                    KVA5.5 / 6.06.5 / 7.2
Maximum power output              KVA6.0 / 6.57.2 / 8.0
Power factorCos=0.8, three phases

Cos

=0.8, three phases

DC output                                  V/A12 / 8.3 12 / 8.3
Engine modelD186FA(E)D188F(E)
Engine output at 3600rpm      hp (kw)8.8 (6.5)10.2 (7.5)
Engine typeDiesel, single cylinder, vertical, 4-stroke, air-cooled, direct injection Diesel, single cylinder, vertical, 4-stroke, air-cooled, direct injection
Fuel type Diesel light fuel Diesel light fuel
Fuel tank capacity                    Litre12.512.5
Continuous running time          Hours6.5 / 5.56.5 / 5.5
Starting methodElectric startElectric start
Packing dimension       L×W×H  mm740 × 495 × 600740 × 495 × 600
N.W. / G.W.                                kg115 / 118116 / 119
Qty by 20FT/40HQ container      pc150 / 208150 / 208
Standard componentsDigital meter, full power alternator at 1 phase & 3 phases, smart AVR, wheels, battery, pallet packingDigital meter, full power alternator at 1 phase & 3 phases, smart AVR, wheels, battery, pallet packing
OptionsATS, pre-heater, remote control

ATS, pre-heater, remote control





ModelDG8000LE3DG8500LE3
Frequency                                   Hz50 / 6050 / 60
Rated voltage                              V110/220,120/240, 220/380, 230/400110/220,120/240, 220/380, 230/400
Rated power output                 KVA7.5 / 8.08.5 / 9.0
Maximum power output            KVA8.0 / 8.59.0 / 9.5
Power factorCos=0.8, three phasesCos=0.8, three phases
DC output                                V/A12 / 8.3 12 / 8.3
Engine modelD192F(E)D195F(E)
Engine output at 3600rpm hp (kw)11.2 (8.2)12.0 (8.8)
Engine typeDiesel, single cylinder, vertical, 4-stroke, air-cooled, direct injection Diesel, single cylinder, vertical, 4-stroke, air-cooled, direct injection
Fuel type Diesel light fuel Diesel light fuel
Fuel tank capacity                    Litre12.512.5
Continuous running time       Hours6.0 / 5.05.5 / 4.5
Starting methodElectric startElectric start
Packing dimension       L×W×H  mm740 × 495 × 600740 × 505 × 620
N.W. / G.W.                                kg121 / 124122/ 125
Qty by 20FT/40HQ container       pc105 / 212105 / 212
Standard componentsDigital meter, full power alternator at 1 phase & 3 phases, smart AVR, wheels, battery, pallet packingDigital meter, full power alternator at 1 phase & 3 phases, smart AVR, wheels, battery, pallet packing
OptionsATS, pre-heater, remote controlATS, pre-heater, remote control
