Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: H-POWER
  • Model Number: HP-S100
  • Voltage: N/A
  • Power(W): 5.5HP/6.5HP/4HP
  • Weight: 80kg
  • Dimension(L*W*H): 1000*1000*710mm
  • Certification: CE EPA
  • Warranty: 1 year, 1 year
  • After-sales Service Provided: No overseas service provided
  • Certificate: EPA,CE, GS, ISO 9001
  • Color: Optional
  • Engine: Robin EY20; Honda GX160/ Loncin 200F/ Diesel 170F
  • Dimension: 1000*1000*710mm
  • Trowel diameter: 920mm
  • Speed range: 60-100(r/min)
  • Pitch range: 0-15°

Packaging & Delivery

Packaging Details: carton or do as your request
Delivery Detail: in 30 days after confirmation of the PI



Product Description

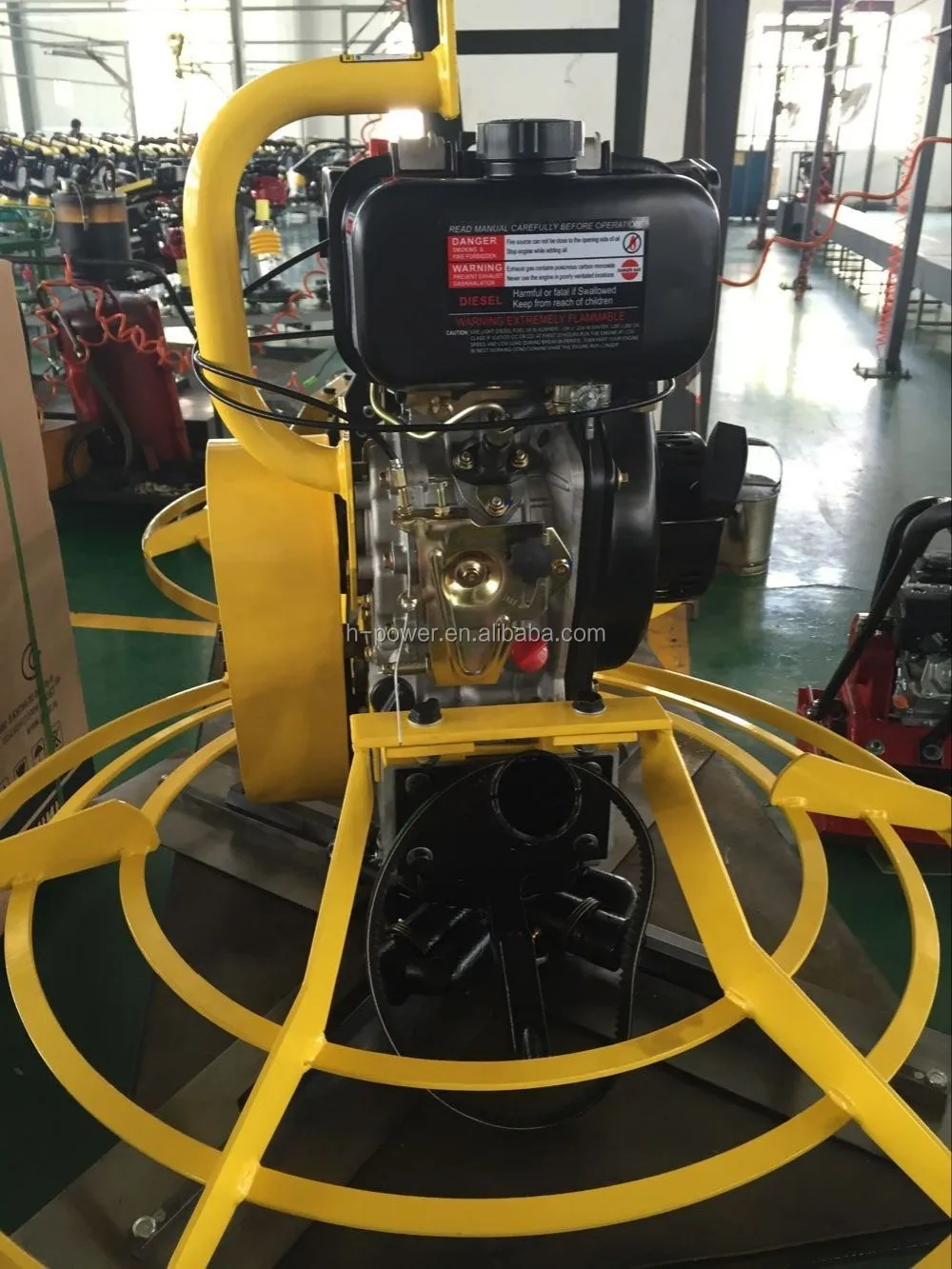

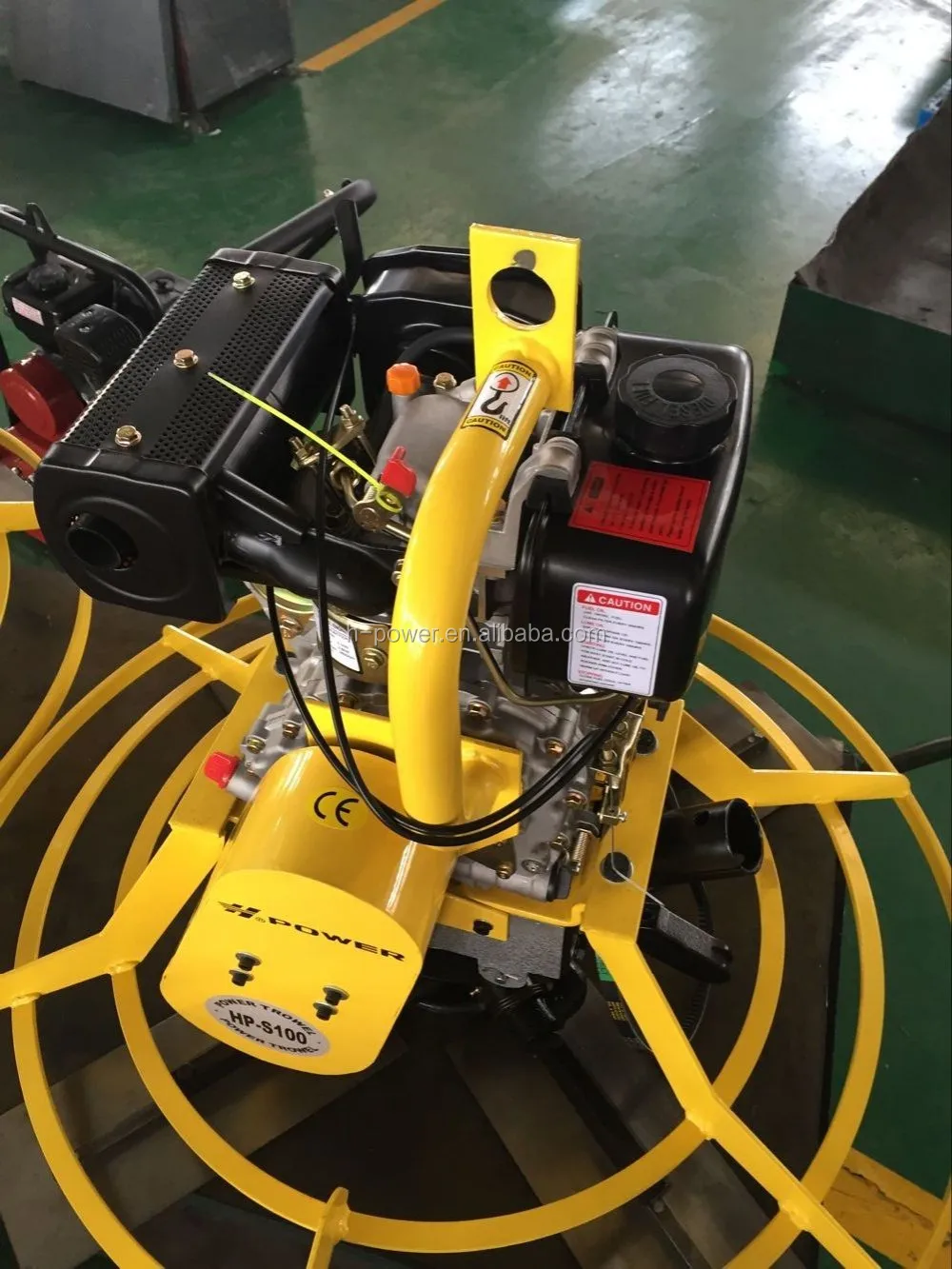

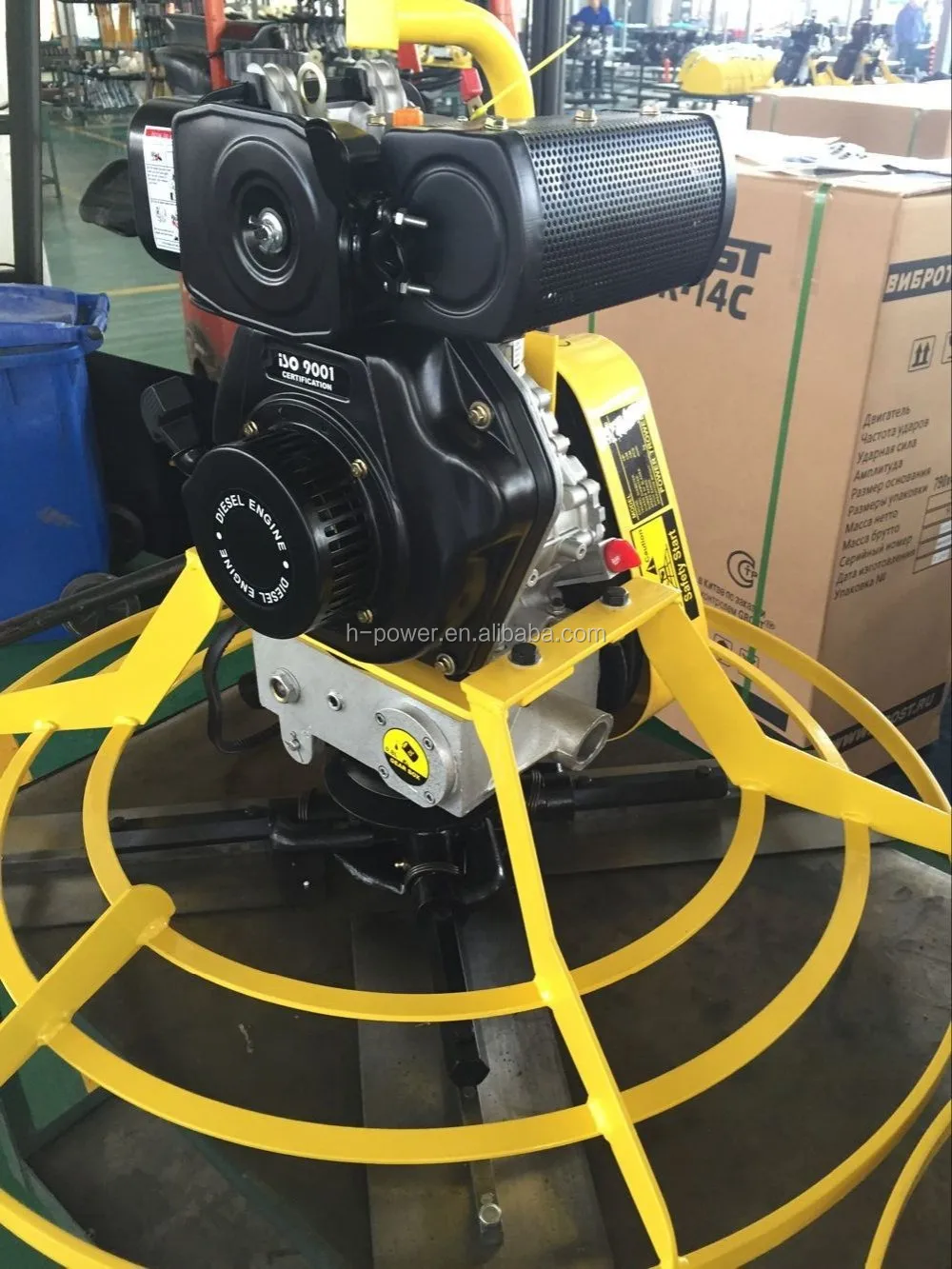

A power trowel (also known as a “power float”, “helicopter” or “trowel machine”) is a piece of light construction equipment used by construction companies and contractors, to apply a smooth finish to concrete slabs.

Independent rotating flywheel, allowing operation in tight corners and in confined spaces

Over-built gearbox assures long service life.

Height adjustable handle, assures operator comfort & easy control.

Screw control ensures precise blade adjustment.



Features:

1. Over-built gearbox assures long service life

2. Heavy-weight design of this concrete power trowel to assure a superior finish

3.  Height adjustable handle of this concrete power trowel, assures operator comfort & easy control

4. Lifting tube as standard feature allows concrete power trowel to be transported on the job-site with only two people

5. centric-safety switch, shuts the engine down in the event of the operator loosing control of the unit

6. Screw control ensuring precise blade adjustment

7. Lifting hook (weight 2.5kg) is available as optional for this concrete power trowel

8. Throttle control is available as optional for this concrete power trowel



Specifications:

Model

HP-S100H

HP-S100R

HP-S100L

HP-S100D

Engine Type

Air-cooled,single cylinder, 4-stroke

Engine

Petrol,Honda GX160

Petrol,Robin EY20

Pertrol,Loncin 200F

Diesel,170F

Power

5.5hp/4.0kw

5.0hp/3.7kw

5.5hp/4.0kw

3.8hp/2.8kw

Operation Weight

93kg(205lbs)

96kg(212lbs)

95kg(210lbs)

105kg(232lbs)

Fuel Capacity

3.6L

2.5L

Rotor Speed

70~140rpm

Working Efficiency

200m2/hour(2,152ft2/hour)

Rotor Diameter

91.4cm

Guard Ring Dia

97cm

Blade Size

35*15*0.2cm

Pitch Range

4pcs

Angle of Blade

0~15°

Carton Size

100*100*71cm



*Other engines are availabe as request.



Packaging & Shipping



Packaging Details:

carton box in steel frame on steel pallet

Delivery Detail:

30days/20ft container,40 days/40HQ



























H-POWER GROUP has Two Factories: ANHUI H-POWER for Light Construction Equipments, and WUXI H-POWER for Diesel Engine&Generators.



CERTIFICATES:CE& EPA&CSA&GS







TRANSPORTATION:



Our Services



Payment Service:

1. Standard T/T

2. L/C
3. D/P negotiable



1.We have big warehouse to store spare parts,then we can supply customers as soon as possible to solve their problems.



2.We have professional technicians to create new models,specialized products,solve after-sale problems.



3.We choose good parts suppliers to provide high quality parts.



4.We do training for workers to control the quality.



Company Information

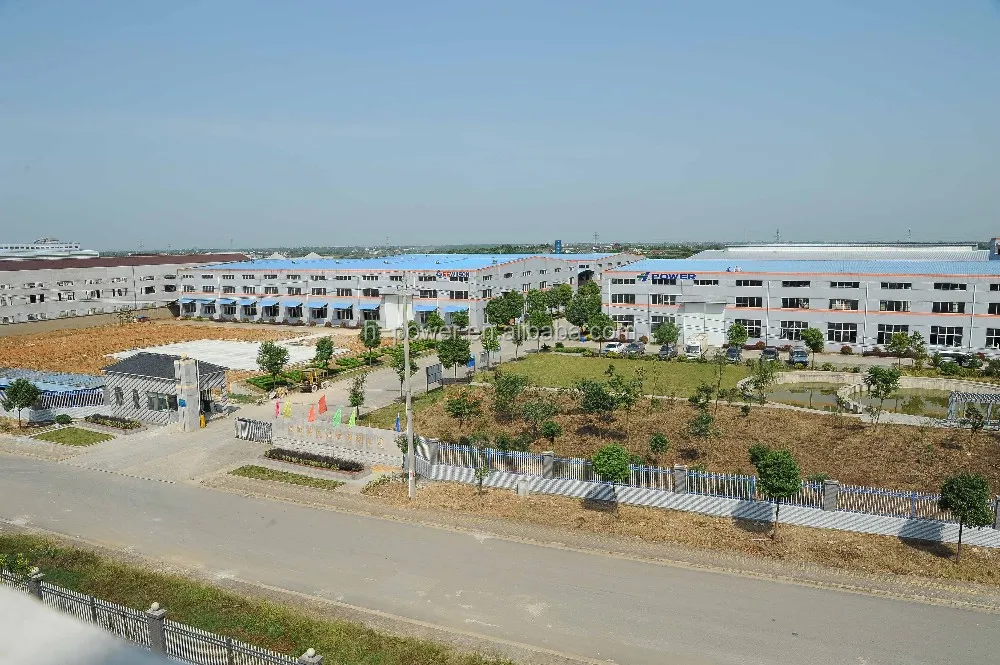

Wuxi H-power machinery co.,ltd. is located on the shore of beautiful Tai lake,the hometown of juicy peach----yangshan town of wuxi,which has convenient transportation and favourable geographical position.H-power is an export-oritened manufacturer,specialized in pruducing engine,generator set,water pump set etc.Through ten years' development,H-power brought into advanced production equipments and technology,and integrated production,marketing and after-sale service.

H-power owns advanced technology and strong production capacity,obtains ISO9001:2000 quality management system certificate,CE,EPS,CSA,GS,2004/26/EC certificates.The products sell well in the Europe,America,Asia,Africa ets,and get high praise from the customers.







EXHIBITION:

You can find us here, such as Canton Fair, Bauma Fair or Our website www.h-power.cn

FAQ



1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.



2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.



3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have distributors all over World that support after sale service.



4. Spare parts supply:
We provide all kinds of spare parts and technical support.



5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
