Dynapac gasoline robin honda power earth sand soil wacker impact jumping jack multiquip compactor Tamping Rammer RM80H

FOB Reference Price:Get Latest Price
US $100-525 / Sets | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
H-Power
Model Number:
HP-RM80H
Weight:
75kg
Dimension(L*W*H):
770*510*1150mm
Certification:
CE, EPA,GS, ISO 9001, CE, EPA,GS, ISO 9001
Color:
Optional
Use:
compact, tamp the sand, gravel and mixer soils
Engine:
Robin EY20; Honda GX160; Loncin 168F; Diesel 170F
Ramming Force:
10KN
Plate Size:
330*290mm
Warranty:
1 year, 1 Year
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Metal Frame with Solid Carton Box
Port
Shanghai or Nanjing
Lead Time :
30 days after confirmation of the PI

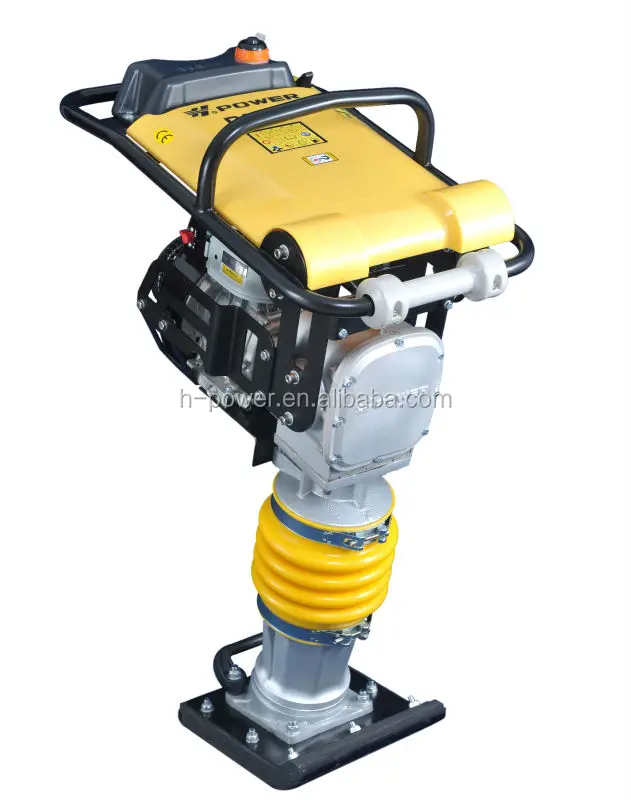

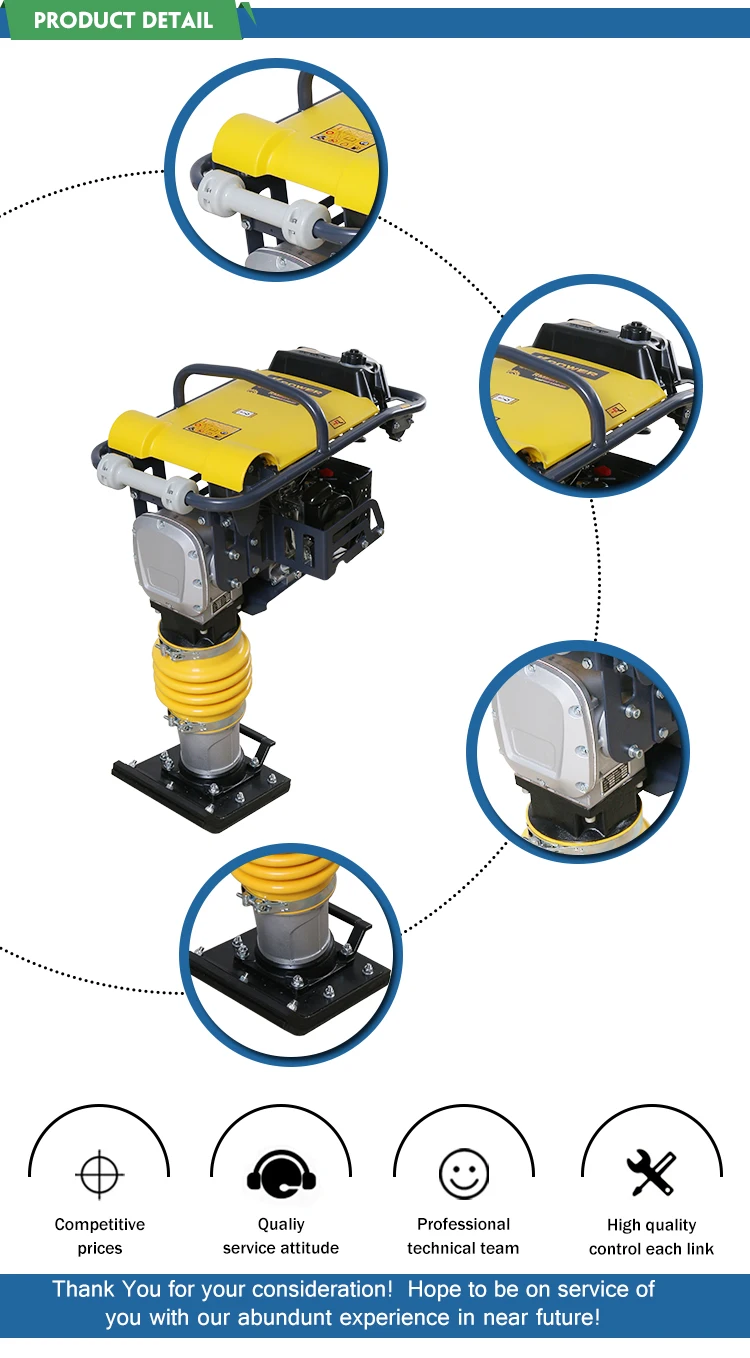

Tamping Rammer HP-RM80H with Honda Engine GX160



Features:
1.Honda GX160 is designed for tamping rammer
2.No need to mix fuel and oil, easy starting, low-noise operation, low maintenance and reduced fuel consumption comparing to 4-stroke engine.

3.High quality, Chinese made bellow.  German bellow is optional.
3.Heavy shock mount system to reduce hand-arm vibration and improve comfort
4.Rammer shoe made of steel plate with wooden insert offers economical usage
5.Special protective frame for engine, prevents any possible damage on tough job site

6.Additional built-in air filtration

7.Optional wheel kit for easy transportation.




Specifications:

ModelHP-RM80H
EnginePetrol, Honda GX160
Type of combustionAir-cooled, single cylinder, 4-stroke
Ramming force10KN
Leap height40-65mm
Advancing speed9-12m/min
Ramming frequency450-660times/min
Ramming plate size330*290mm
Operation weight75kg
Shipping size770*510*1150mm

*Other engines are availabe as request.



Hitachi Type Tamping Rammer HP-RM80H Series:
