Mikasa type 15KN high quality Rammer RM85

FOB Reference Price:Get Latest Price
US $100-525 / Pieces | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
H-Power
Model Number:
HP-RM85R
Weight:
85kg
Dimension(L*W*H):
770*510*1150mm
Certification:
CE, EPA,GS, ISO 9001, CE, EPA,GS, ISO 9001
Color:
Optional
Use:
compact, tamp the sand, gravel and mixer soils
Engine:
Robin EY20; Honda GX160; Loncin 168F; Diesel 170F
Ramming Force:
10KN
Plate Size:
330*290mm
Warranty:
1 year
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Metal Frame with Solid Carton Box
Port
Shanghai or Nanjing
Lead Time :
30 days after confirmation of the PI

Specifications

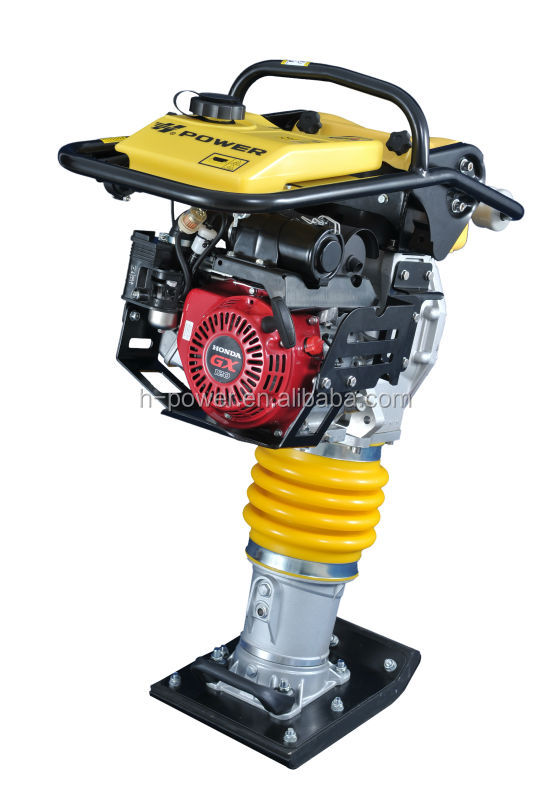

Tamping Rammer HP-RM85
High-quality Honda engine,high-quality frame to protect the engine and promote effeciency

Tamping Rammer HP-RM80H with DIESEL Engine HP178F

Features:
1.HP178F is designed for tamping rammer
2.No need to mix fuel and oil, easy starting, low-noise operation, low maintenance and reduced fuel consumption comparing to 4-stroke engine.

3.High quality, Chinese made bellow.  German bellow is optional.
3.Heavy shock mount system to reduce hand-arm vibration and improve comfort
4.Rammer shoe made of steel plate with wooden insert offers economical usage
5.Special protective frame for engine, prevents any possible damage on tough job site

6.Additional built-in air filtration

7.Optional wheel kit for easy transportation.



Specification

Model

HP-RM85H

HP-RM85R

Engine

Honda GXR120

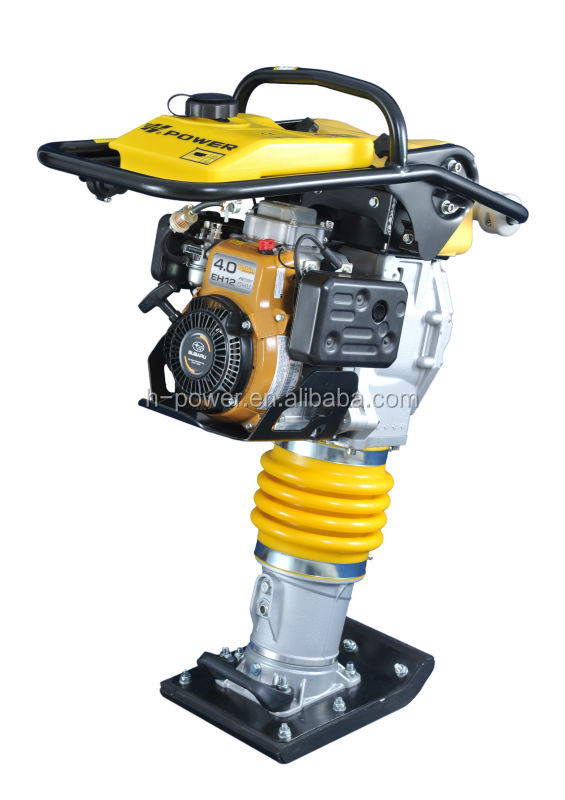

Robin EH12

Type of combustion

Air-cooled,single cylinder,4-stroke

Impact force

15KN

Leap height

50-80mm

Advancing speed

9-12 m/min

Frequency

640-680 times/min

Plate size

345x285mm

Weight

85kg

Carton size

770x510x1150mm

Load quantity

130pcs/40GP




*Other engines are availabe as request.

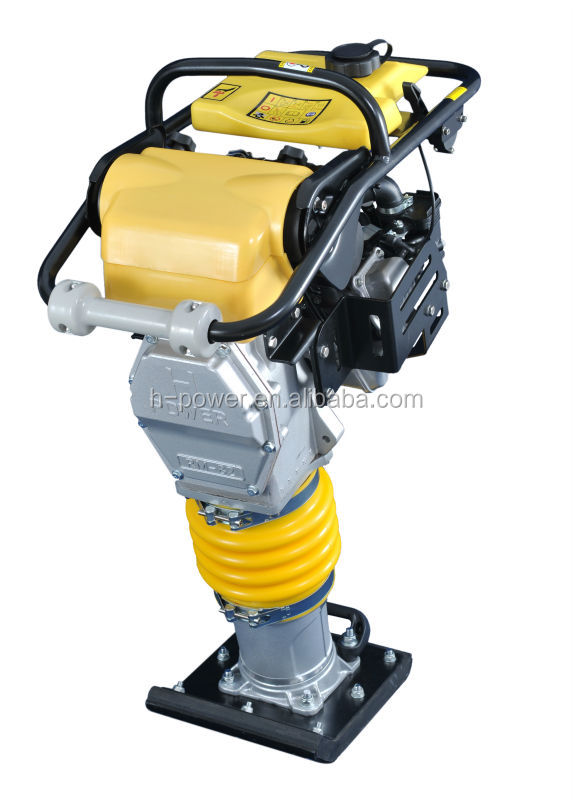

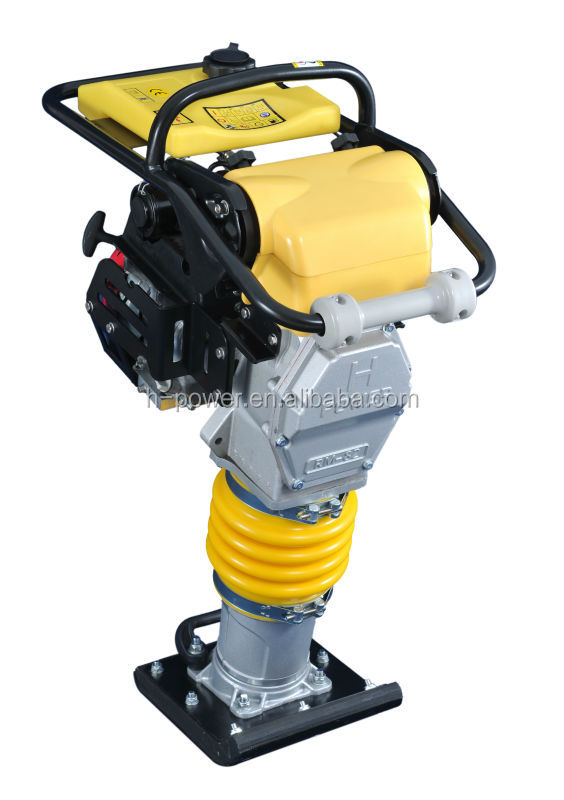

Mikasa Type Tamping Rammer HP-RM85H Series:



 RM851.JPGRM852.JPGRM85R.JPGRM85 GX120.JPG

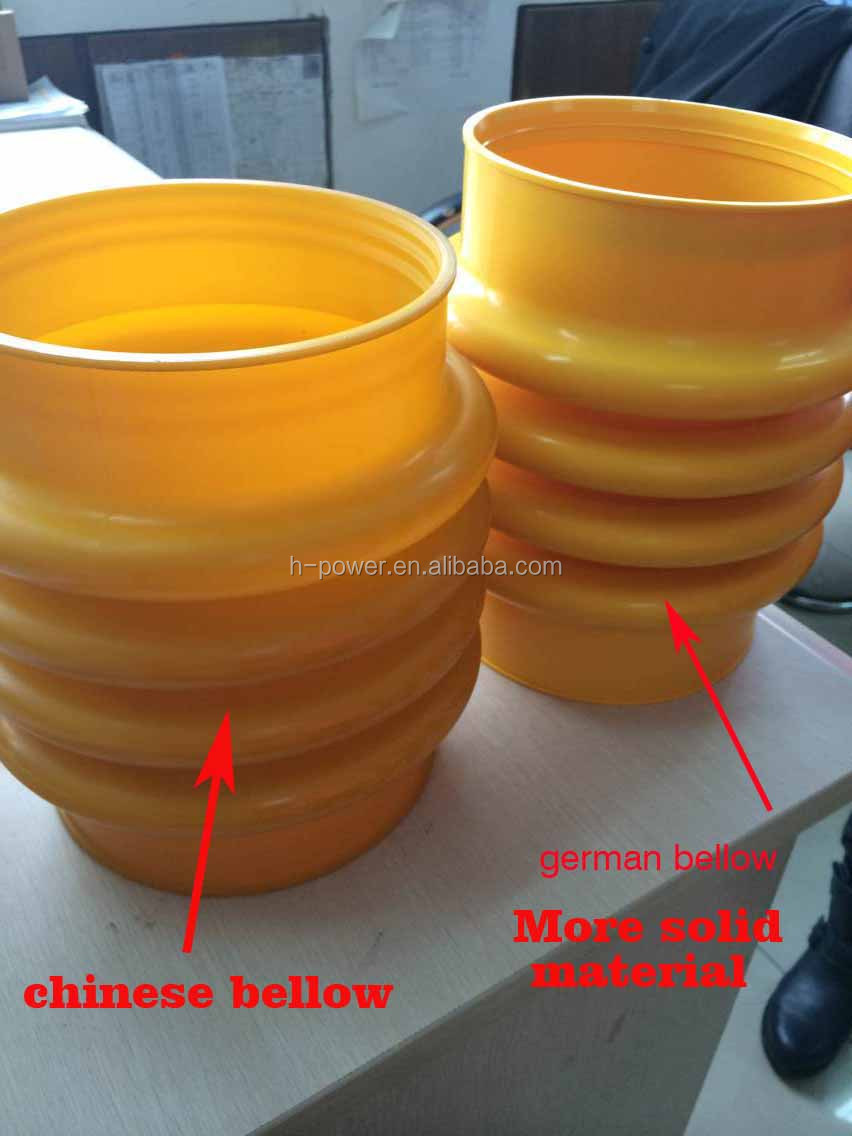

 German bellow as option

 compareGermanbellow1 (2)

H-POWER GROUP has been founded in the year of 2003.  Now we have Two Factories: ANHUI H-POWER for Light Construction Equipments, and WUXI H-POWER for Diesel Engine&Generators.

.jpg





Package:

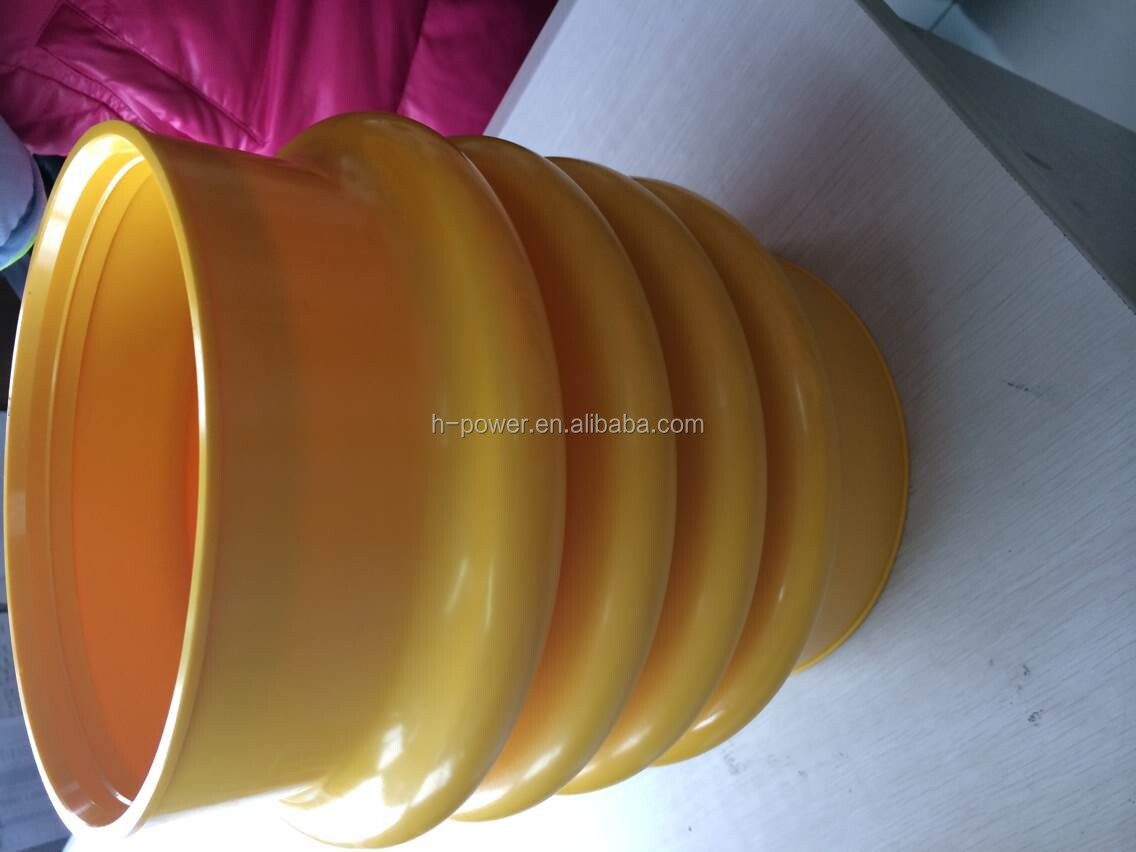

German Bellow as option



comparisongerman bellow



CERTIFICATES:CE& EPA&CSA&GS

.jpg







TRANSPORTATION:

.jpg





EXHIBITION:You can find us here, such as Canton Fair, Bauma Fair or Our website www.h-power.cn

-1

.jpg





Thank You for your consideration!  Hope to be on service of you with our abundunt experience in near future!
