Motors diesel engine HP186FE (CE, CSA)

FOB Reference Price:Get Latest Price
US $202-239 / Sets | 10 Set/Sets Motors diesel engine HP186FE (CE, CSA) (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Usage:
used for engine
Fuel:
Diesel
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
Electric Start
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
H-Power
Model Number:
HP186FE
Dimension(L*W*H):
510*475*565
Weight:
55KG
Certification:
CE, CSA, CE, CSA
Use:
universality
Color:
Optional
Istallation Service:
no
Rated Power:
9HP
Option 1:
with flywheel alternator
Warranty:
1 YEAR
Supply Ability
Supply Ability:
2000 Set/Sets per Month Motors diesel engine HP186FE (CE, CSA)
Packaging & Delivery
Packaging Details
carton
Port
shanghai
Lead Time :
in 30 days after confirmation of the PI

 Motors diesel engine HP186FE (CE, CSA)

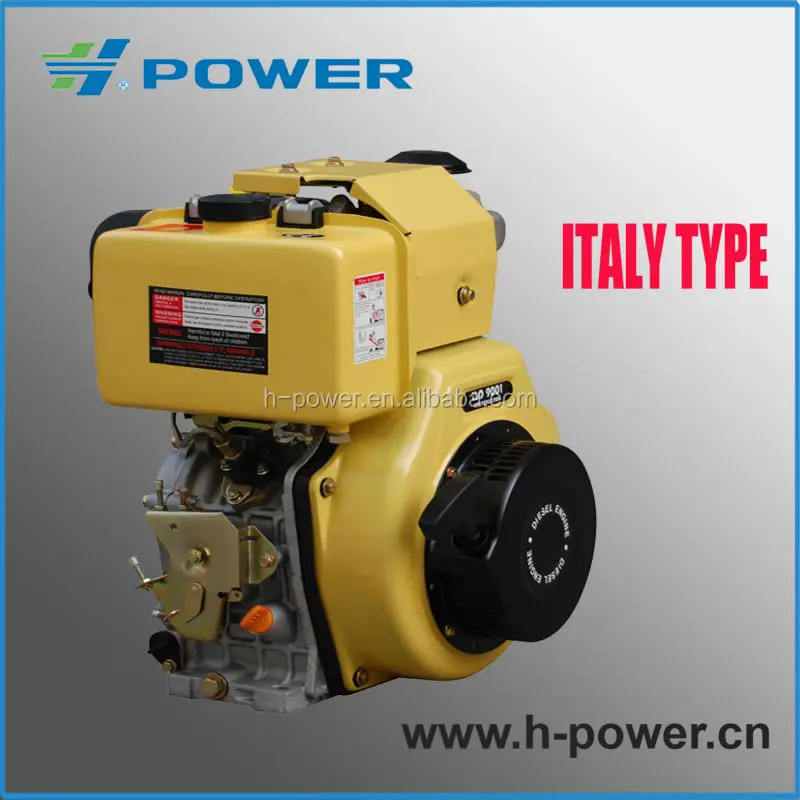

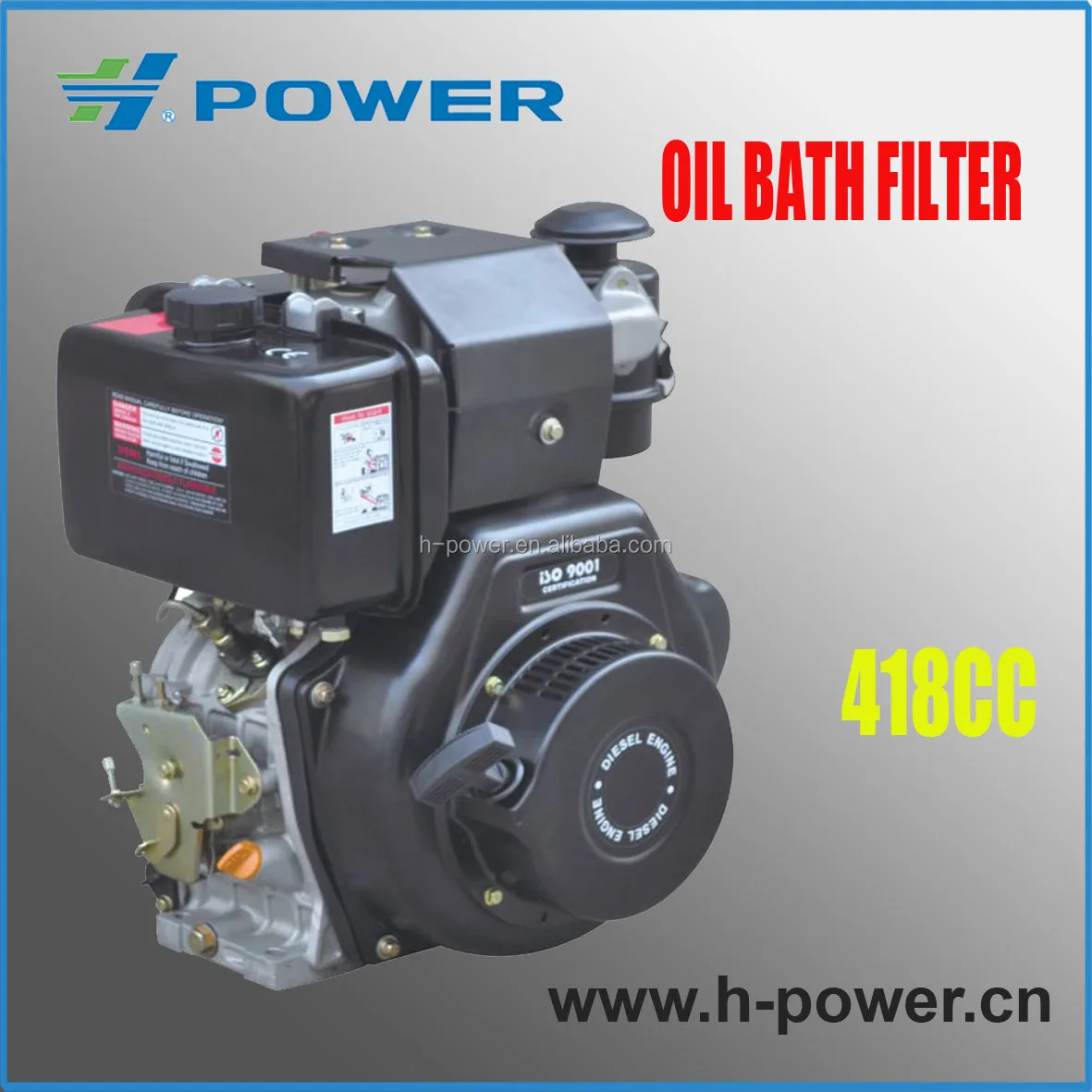

Diesel Engine HP186FE, Air Cooled,9HP



* Description

EPA Exhaust Emission Compliant

The miniaturized fuel injection system

Low fuel consumption

Lightweight and compact design

Easy and fast starting

Stand up the hard work

Recoil or electric starting

Multiple PTO Shaft Options





*Specification

Model
HP170F
(E)
HP178F(E)
HP178FS(E)
HP178FA(E)
HP186F(E)
HP186FS(E)
HP186FA(E)
Type
Single-cylinder Vertical 4-stroke air-cooled Diesel engine
Bore x stroke(mm)
70x55
78x62
78x62
78x64
86x70
86x70
86x72
Displacement(mi)
211
296
296
305
406
418
418
Compression Ratio
20:1
20:1
19:1
Rated speed(rpm)
3000
3600
3000
3600
1500
1800
3000
3600
3000
3600
1500
1800
3000
3600
Rated output(KW)
2.5
2.8
3.68
4.0
3.68
4.0
3.68
4.0
5.7
6.3
5.7
6.3
5.7
6.3
MAX.output(KW)
2.8
3.1
4.0
4.4
4.0
4.4
4.0
4.4
6.3
6.8
6.3
6.8
6.3
6.8
Fuel consume(g/KW)
294.9
310.0
290.0
307.0
290.0
307.0
290.0
307.0
283.5
295.7
283.5
295.7
283.5
295.7
Starting fash on
Manual or Electric Start
Fuel tank capacity(L)
2.5
3.5
5.5
Oil capacity(L)
0.8
1.1
1.65
Fuel trademark
0#(Summer)-10#(Winter)diesel
Oil trademark
40CC
Continuous running time(h)
3.0
2.5
2.5
2.0
2.5
2.0
2.5
2.0
2.5
2.0
2.5
2.0
2.5
2.0
Overall dimension LxWxH(mm)
415x385x470
480x465x525
510x475x565
N.W./G.W.(kg)
26/31
33/38
48/53



Diesel Engine HP186FE:







CERTIFICATES:CE& EPA&CSA&GS:





TRANSPORTATION:



EXHIBITION:You can find us here, such as Canton Fair, Bauma Fair or Our website www.h-power.cn





Thank You for your consideration!  Hope to be on service of you with our abundunt experience in near future!
