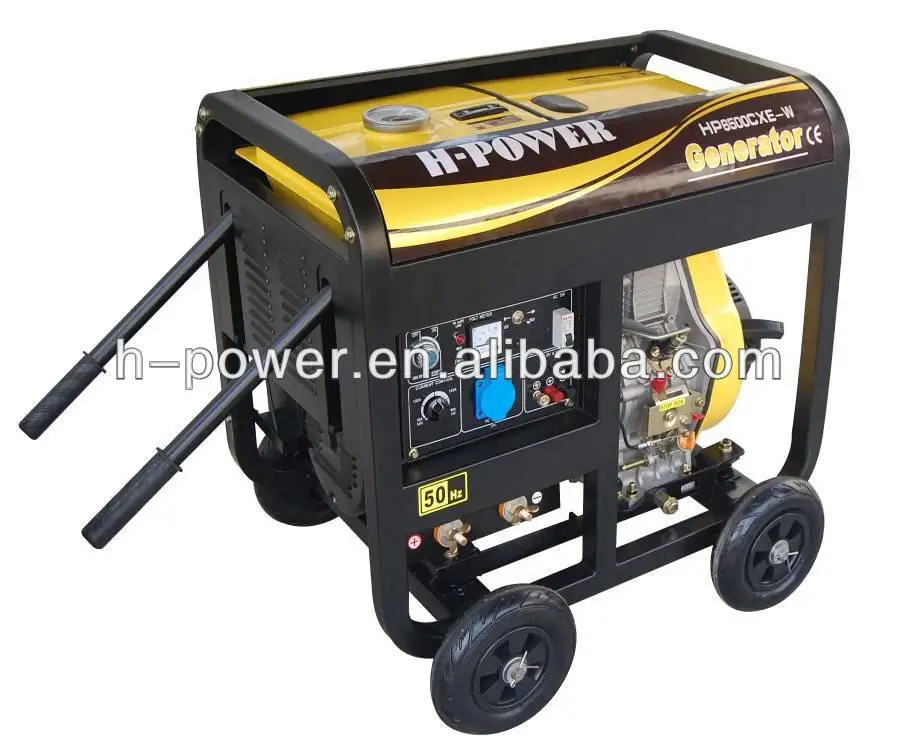

5KW used diesel welder generator for sale
| Model | HP5500CX-W / HP5500CXE-W |
| Rated frequency (Hz) | 50/60 |
| Rated power (kW) | 2.4/2.8 |
| Rated voltage (V) | 230/240-120 |
| Rated current (A) | 12.2/11.7-23.3 |
| No. of phase | single |
| Power factor (cosφ) | 1 |
| Welding voltage at zero load (DC) (V) | 60-65 |
| Rated welding current DC (A) | 160 |
| Welding voltage (DC) (V) | 25-30 |
| Welding load continuous ratio | 60% |
| Welding current adjustment range (A) | 50-180 |
| Electrode (φ) (mm) | 1.6-4.0 |
| Rated speed (r/min) | 3,000 / 3,600 |
| Excitation mode | self-excitation and constant voltage (AVR) |
| Recifying mode | IGBT + three-phase rectifying bridge (PWM)I |
| nsulation grade | FPole number: 2 |
| Engine model | HP186FA / HP186FAE |
| Engine type | single-cylinder, vertical, four-stroke, air-cooled |
| Displacement (ml) | 418 |
| Rated power (kW/r/min) | 6.3/3,000, 6.8/3,600 |
| Fuel type | 0# (summer), -10# (winter), -35# (chill cold) |
| light dieselLube oil brand | SAE10W30 (above CC grade) |
| Fuel consumption (g/kW.h) | 340 |
| Fuel tank capacity (L) | 16 |
| Continuous running time (hr) | 10 |
| Overall dimension (mm) (L x W x H) | 720 x 480 x 645 |
| Dry weight (kg): CX-W: 102 / CXE-W | 108 |
| Starting system: CX-W: recoil starter / CXE-W | electric starter |
| Noise level (at rated load): dB(A)/7m | 7 |
Detail showing
