Air Cooled 296CC Diesel Engine HP178F

FOB Reference Price:Get Latest Price
US $178-257 / Cartons | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Usage:
Other
Fuel:
Diesel
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
Electric Start
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
H-POWER
Model Number:
HP178F(E)
Dimension(L*W*H):
480*465*525MM
Weight:
36KG
Warranty:
1YEAR
Certification:
EPA, CSA, CE
Use:
universality
Color:
Optional
Istallation Service:
no
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton
Port
ShangHai/Ningbo
Lead Time :
in 30 days after confirmation of the PI

Specifications

Diesel engine,engine,HP178FE
air-cooled, vertical, single cylinder, 4-stroke, 7HP
CE,EPA,CSA

Diesel engine



* Description

EPA Exhaust Emission Compliant

The miniaturized fuel injection system

Low fuel consumption

Lightweight and compact design

Easy and fast starting

Stand up the hard work

Recoil or electric starting

Multiple PTO Shaft Options

Electric and / or Recoil Start



*Specification

Model
HP170F
(E)
HP178F(E)
HP178FS(E)
HP178FA(E)
HP186F(E)
HP186FS(E)
HP186FA(E)
Type
Single-cylinder Vertical 4-stroke air-cooled Diesel engine
Bore x stroke(mm)
70x55
78x62
78x62
78x64
86x70
86x70
86x72
Displacement(mi)
211
296
296
305
406
418
418
Compression Ratio
20:1
20:1
19:1
Rated speed(rpm)
3000
3600
3000
3600
1500
1800
3000
3600
3000
3600
1500
1800
3000
3600
Rated output(KW)
2.5
2.8
3.68
4.0
3.68
4.0
3.68
4.0
5.7
6.3
5.7
6.3
5.7
6.3
MAX.output(KW)
2.8
3.1
4.0
4.4
4.0
4.4
4.0
4.4
6.3
6.8
6.3
6.8
6.3
6.8
Fuel consume(g/KW)
294.9
310.0
290.0
307.0
290.0
307.0
290.0
307.0
283.5
295.7
283.5
295.7
283.5
295.7
Starting fash on
Manual or Electric Start
Fuel tank capacity(L)
2.5
3.5
5.5
Oil capacity(L)
0.8
1.1
1.65
Fuel trademark
0#(Summer)-10#(Winter)diesel
Oil trademark
40CC
Continuous running time(h)
3.0
2.5
2.5
2.0
2.5
2.0
2.5
2.0
2.5
2.0
2.5
2.0
2.5
2.0
Overall dimension LxWxH(mm)
415x385x470
480x465x525
510x475x565
N.W./G.W.(kg)
26/31
33/38
48/53

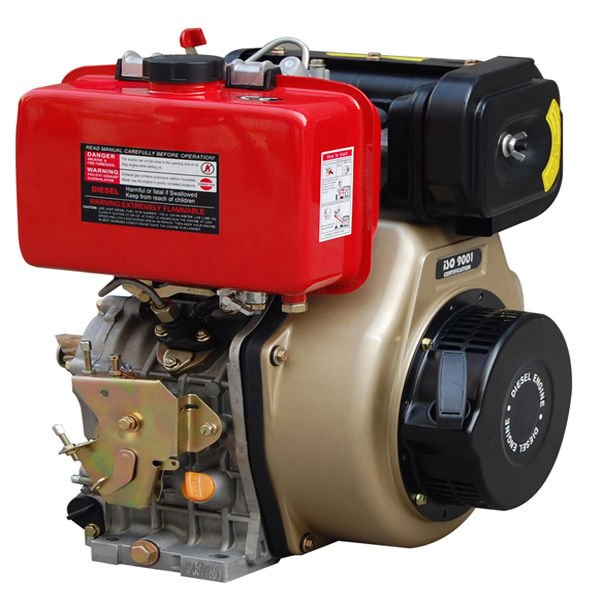

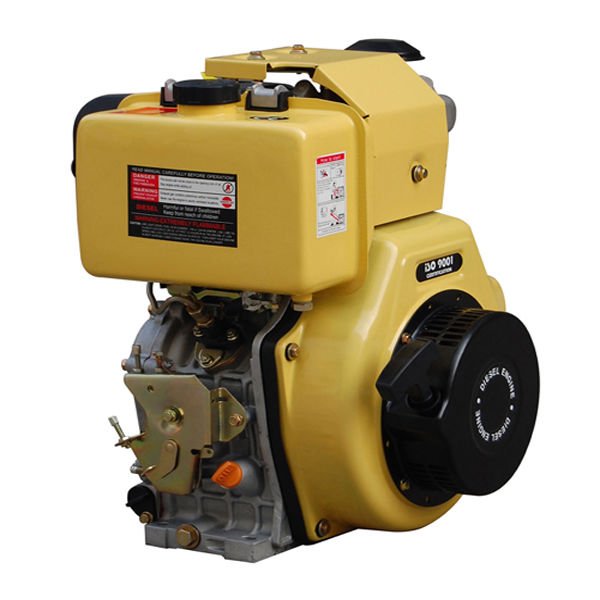

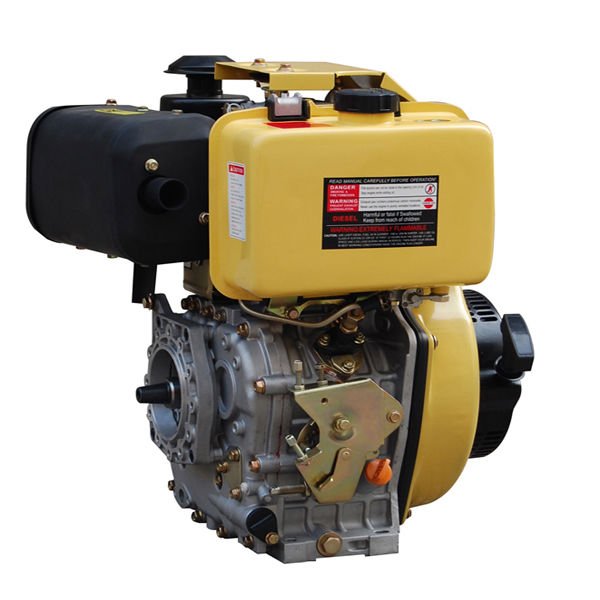

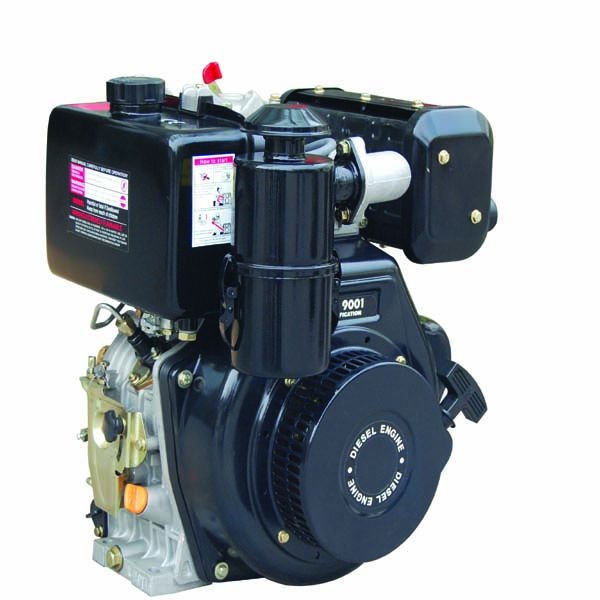

186F 1.jpg186F 2.jpg186FA (1).jpg186FA (2).jpg




Certificates(CE,EPA,CSA) for Reference:

.jpg







Transportation:

.jpg





EXHIBITION:You can find us here, such as Canton Fair, Bauma Fair or Our website www.h-power.cn

.jpg





Thank You for your consideration!  Hope to be on service of you with our abundunt experience in near future!
